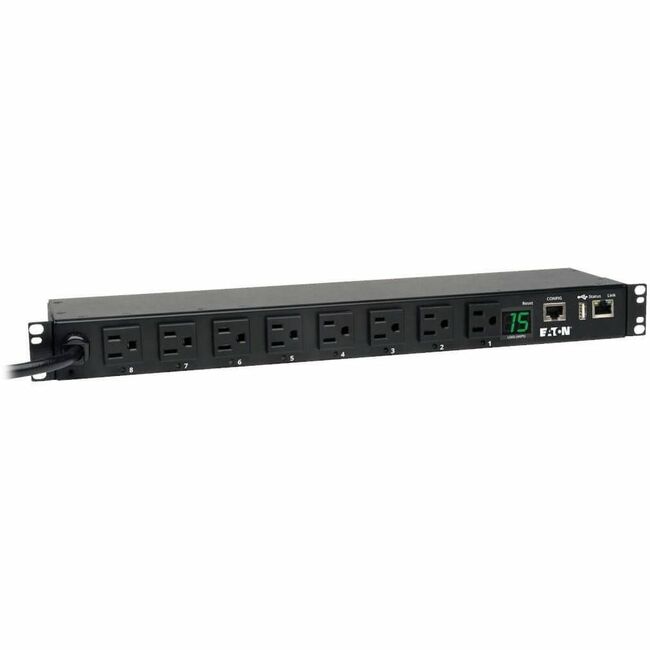

Tripp Lite PDU Switched 120V 1.4kW 15A 8 5-15R 5-15P LX Interface 1URM TAA
Tripp Lite PDU Switched 120V 1.4kW 15A 8 5-15R 5-15P LX Interface 1URM TAA - Switched - NEMA 5-15P - 8 x NEMA 5-15R - 120 V AC - 1U - Horizontal - Rack Mount - Rack-mountable - TAA Compliant
$515.08EA
$793.72
$793.72
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Item:
PDUMH15NET2LX
UPC Code:
037332203274
Our Part #
TRPPDUMH15NET2LX
Condition
New
- 1.4kW 120V single-phase switched 1U PDU
- 8 individually controllable NEMA 5-15R outlets
- Built-in Java-free LX Platform interface for remote access 24/7
- Digital ammeter for on-site load monitoring in real time
- NEMA 5-15P input with 12 ft. AC power cord
You may be also interested
Product description
Tripp Lite PDU Switched 120V 1.4kW 15A 8 5-15R 5-15P LX Interface 1URM TAA - Switched - NEMA 5-15P - 8 x NEMA 5-15R - 120 V AC - 1U - Horizontal - Rack Mount - Rack-mountable - TAA Compliant
Switched - NEMA 5-15P - 8 x NEMA 5-15R - 120 V AC - 1U - Horizontal - Rack Mount - Rack-mountable - TAA Compliant
Specifications
Country of origin
Taiwan
Depth
4.3"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
1.8"
Input current
15 A
Input voltage
120 V AC
Limited Warranty
2 Year
Management
Protocols:
- IPv4
- IPv6
- HTTP
- HTTPS
- SMTP
- SNMPv1
- SNMPv2
- SNMPv3
- telnet
- SSH
- FTP
- DHCP
- NTP
Manufacturer Part Number
PDUMH15NET2LX
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
The PDUMH15NET2LX 1.4kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on turn off reboot or lock out power to each outlet. By reducing the frequency of on-site visits these advanced remote capabilities can save you money and reduce downtime.
The 1U PDU features eight switched NEMA 5-15R outlets with an included cord retention bracket to prevent cables from becoming accidentally disconnected. A 12-foot cord with NEMA 5-15P plug connects the PDU to a compatible AC power source generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP.
A digital ammeter allows you to monitor the total load in real time to ensure it remains well below maximum capacity with no danger of overload. The rack-mount PDU installs in 1U of space in EIA-standard 19-inch racks. You can also mount it vertically in 0U of rack space or on a wall or under a counter with the included brackets and user-supplied screws.
The 1U PDU features eight switched NEMA 5-15R outlets with an included cord retention bracket to prevent cables from becoming accidentally disconnected. A 12-foot cord with NEMA 5-15P plug connects the PDU to a compatible AC power source generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP.
A digital ammeter allows you to monitor the total load in real time to ensure it remains well below maximum capacity with no danger of overload. The rack-mount PDU installs in 1U of space in EIA-standard 19-inch racks. You can also mount it vertically in 0U of rack space or on a wall or under a counter with the included brackets and user-supplied screws.
Mount Type
Rack-mountable
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Output voltage
127 V AC
Output voltage
100 V AC
Package Contents
- PDUMH15NET2LX 8-Outlet PDU
- Built-in LX Platform Interface
- Configuration Cable
- 8 x Cable Ties
- Cord Retention Bracket
- Mounting Hardware
- Owner's Manual
PDU Type
Switched
PDU Type
Switched
PDU Type
Switched
PDU Type
Switched
PDU Type
Switched
PDU Type
Switched
PDU Type
Switched
PDU Type
Switched
PDU Type
Switched
PDU Type
Switched
PDU Type
Switched
PDU Type
Switched
PDU Type
Switched
PDU Type
Switched
PDU Type
Switched
PDU Type
Switched
PDU Type
Switched
PDU Type
Switched
PDU Type
Switched
PDU Type
Switched
PDU Type
Switched
PDU Type
Switched
PDU Type
Switched
PDU Type
Switched
PDU Type
Switched
Phase
Single Phase
Phase
Single Phase
Phase
Single Phase
Phase
Single Phase
Phase
Single Phase
Phase
Single Phase
Phase
Single Phase
Phase
Single Phase
Phase
Single Phase
Phase
Single Phase
Phase
Single Phase
Phase
Single Phase
Phase
Single Phase
Phase
Single Phase
Phase
Single Phase
Phase
Single Phase
Phase
Single Phase
Phase
Single Phase
Phase
Single Phase
Phase
Single Phase
Phase
Single Phase
Phase
Single Phase
Phase
Single Phase
Phase
Single Phase
Phase
Single Phase
Plug/Connector Type
NEMA 5-15P
Power Rating (Watt)
1520 W
Power Rating (Watt)
1520 W
Power Rating (Watt)
1520 W
Power Rating (Watt)
1520 W
Power Rating (Watt)
1520 W
Power Rating (Watt)
1520 W
Power Rating (Watt)
1520 W
