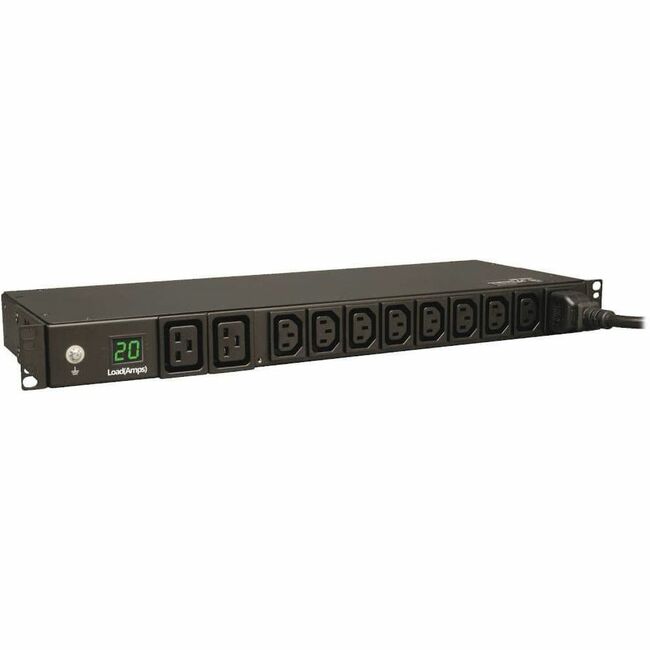

Tripp Lite PDU Metered 200-240V 20A 8 C13; 2 C19 Outlet L6-20P 1U RM TAA
Tripp Lite PDU Metered 200-240V 20A 8 C13; 2 C19 Outlet L6-20P 1U RM TAA - 1UHorizontal Rackmount
$207.07EA
$292.04
$292.04
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Item:
PDUMH20HV
UPC Code:
037332159014
Our Part #
TRPPDUMH20HV
Condition
New
- Metered single phase 16/20A 200-240V PDU
- 1U horizontal rackmount; Digital current meter
- C20 input with L6-20P plug adapter; 12 ft. / 3.7m line cord
- 10 total outlets (8 C13, 2 C19)
You may be also interested
Product description
Tripp Lite PDU Metered 200-240V 20A 8 C13; 2 C19 Outlet L6-20P 1U RM TAA - 1UHorizontal Rackmount
1UHorizontal Rackmount
Specifications
Country of origin
Taiwan
Depth
6.5"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
1.8"
Input voltage
230 V AC
Input Voltage Range
200 V AC - 240 V AC
Limited Warranty
2 Year
Manufacturer Part Number
PDUMH20HV
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
PDUMH20HV Metered 1U rack PDU supports 20A maximum capacity at 208/240 & 230V (agency de-rated to 16 amps). Includes C20 inlet and detachable input cable with both C20 and L6-20P input plug options. 10 total output receptacles (8 C13 and 2 C19). Visual current meter tracks the output current of all outlets combined. Supports 1U rackmount installation in 19 inch 2 or 4 post racks. Included cord retention bracket keeps vital network equipment plugged in and continuously powered.
Mount Type
Rack-mountable
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Mounting Orientation
Horizontal
Output voltage
208 V AC
Output voltage
240 V AC
Package Contents
- Metered PDUMH20HV 10-Outlets PDU
- Rackmount Brackets
- Cord Retention Brackets
Plug/Connector Type
IEC 60320 C20
Plug/Connector Type
NEMA L6-20P
Product Name
Metered PDUMH20HV 10-Outlets PDU
Product Series
Metered
Protection Type
Overload Protection
Rack Height
1U
Receptacle Detail
8 x IEC 60320 C13
Receptacle Detail
2 x IEC 60320 C19
Receptacle Detail
8 x IEC 60320 C13
Receptacle Detail
2 x IEC 60320 C19
Receptacle Detail
8 x IEC 60320 C13
Receptacle Detail
2 x IEC 60320 C19
Receptacle Detail
8 x IEC 60320 C13
Receptacle Detail
2 x IEC 60320 C19
Receptacle Detail
8 x IEC 60320 C13
Receptacle Detail
2 x IEC 60320 C19
Receptacle Detail
8 x IEC 60320 C13
Receptacle Detail
2 x IEC 60320 C19
Receptacle Detail
8 x IEC 60320 C13
Receptacle Detail
2 x IEC 60320 C19
Receptacle Detail
8 x IEC 60320 C13
Receptacle Detail
2 x IEC 60320 C19
Receptacle Detail
8 x IEC 60320 C13
Receptacle Detail
2 x IEC 60320 C19
Receptacle Detail
8 x IEC 60320 C13
Receptacle Detail
2 x IEC 60320 C19
Receptacle Detail
8 x IEC 60320 C13
Receptacle Detail
2 x IEC 60320 C19
Receptacle Detail
8 x IEC 60320 C13
Receptacle Detail
2 x IEC 60320 C19
Receptacle Detail
8 x IEC 60320 C13
Receptacle Detail
2 x IEC 60320 C19
Receptacle Type
IEC 60320 C13
Receptacle Type
IEC 60320 C19
UPC Alternates
037332159014 803930103342 818242945467 974573824984 993246979592
Weight (Approximate)
6.80 lb
Width
17.5"
Brand Name
Tripp Lite
Manufacturer
Tripp Lite by Eaton
Product Type
PDU
